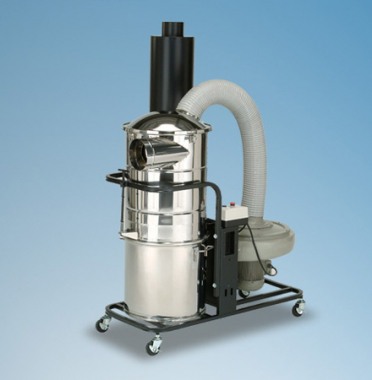

CS-105 Series Oil Mist Collector & Filtration System

Models:

CS-1051 – Turbo Fan Type Oil Mist Collector

CS-1052 – Multi-Stage Oil Mist Collector

Origin: Made in Taiwan

Description

The CS-105 series oil mist collector is designed for CNC lathes, milling machines, grinding machines, drilling machines, and other environments with oil mist emissions, ensuring 24/7 operation.

Key Features

• Compact Footprint:
  Space-saving design ideal for factory environments with limited space.

• YUCHA Nanofilm Filter – ASHRAE Certified:
  Achieves MERV 16 efficiency, equivalent to HEPA-grade filtration.

• Floor-Standing, Vibration-Free Design:
  Improves machining accuracy with zero vibration interference.

• Suitable for Various Oil Mist Environments:
  Designed for CNC lathes, milling machines, grinders, drilling machines, and other oil mist-generating operations.

• Superior Filtration with Easy Maintenance:
  Filters are washable and reusable, simplifying long-term maintenance.

• Constructed with SUS#304 Stainless Steel:
  Smooth, polished surfaces inside and out—easy to clean and corrosion-resistant.

• Recyclable Oil & Water Collection:
  Collected oil mist and condensate can be reused, promoting sustainability.

• High Suction Power – Multi-Equipment Support:
  One unit can serve multiple machines simultaneously with fast and powerful suction.

• Centrifugal Multi-Stage Separation:
  Effectively separates oil mist and condensate in multiple stages, preventing leakage.

• Negative Pressure System:
  Minimizes explosion risk by maintaining a sealed airflow system.

• Large-Area PET Pleated Filters:
  Filters particles down to 0.1μm; suitable for both wet and dry use, washable and easy to replace.

• Motor Protection Design:
  Blower is isolated from intake materials, reducing contamination and extending motor life.

• Central System Compatible:
  Supports 24/7 continuous operation and can be integrated into central dust collection systems.

• Drawer-Style Dust & Oil Collection Bin:
  Equipped with pull handle and wheels for fast, convenient removal and cleaning.

• Customizable Power & Specifications:
  Available in multiple horsepower options and configurations tailored to your needs.

• Integrated Silencer:
  Reduces noise levels and ensures a quieter working environment.

• Built-In Pressure Gauge:
  Real-time monitoring of filter status to detect blockages at a glance.

✅ Explosion-proof dust collectors, powder vacuums, industrial vacuum cleaners, exhaust gas treatment systems
✅ Custom designs for hoods, inlet diameters, collection capacity, and material (304 / 316 stainless steel available)
✅ Tailored configurations for motor power, airflow, and static pressure
✅ YUCHA is a professional dust collector manufacturer based in Taiwan, offering full customization services
✅ YUCHA reserves the right to modify technical specifications without prior notice
✅ All images, figures, and data are for reference only and may vary based on final design
✅ Contact us today for a tailored solution and quotation
