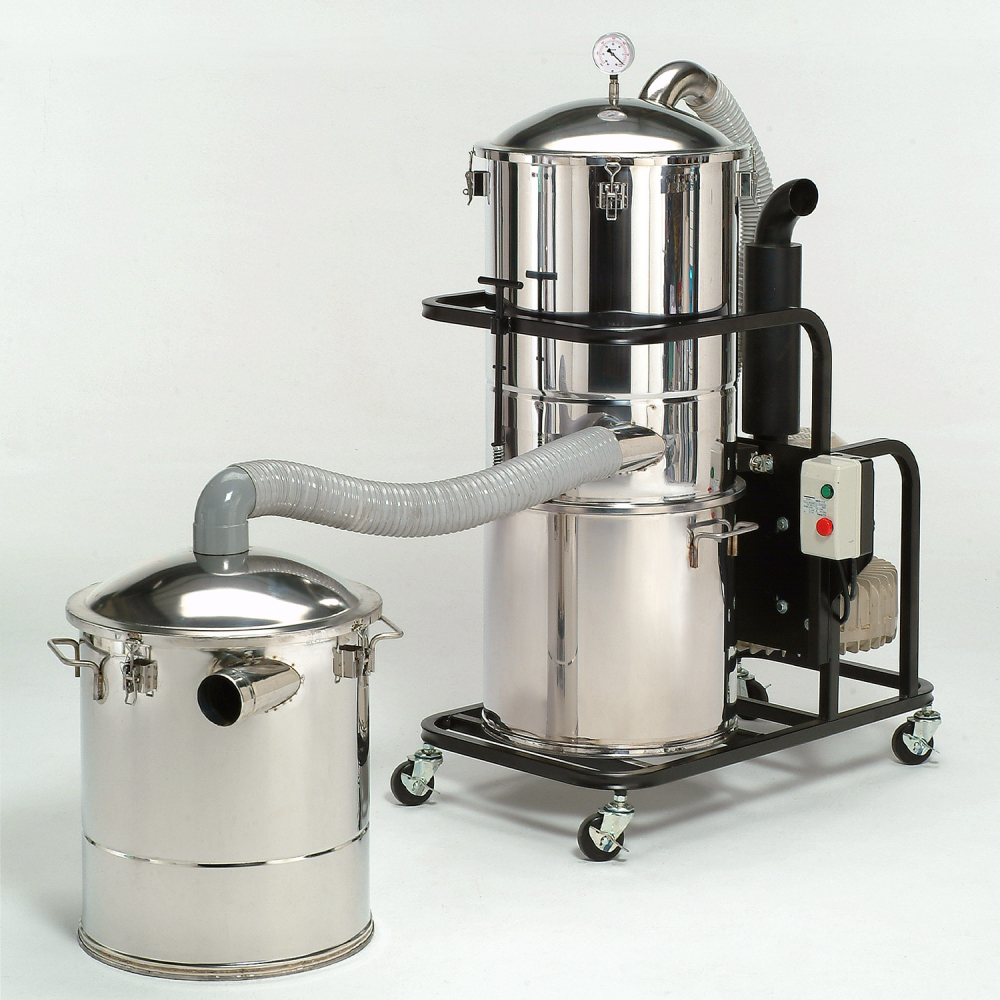

CS-103 Water Filtration Dust Collector｜Wet & Dry｜Centrifugal Dust Collection System

Model Numbers:
CS-1031 – Water-Filtration Regenerative Blower Type Pulse Dust Collector
CS-1032 – Water-Filtration Multistage Blower Type Pulse Dust Collector
CS-1033 – Water-Filtration High-Pressure Type Pulse Vacuum Cleaner
Origin: 100% Made in Taiwan
Specification: Wet & Dry Centrifugal Dust Collector – Professionally Dust Collector manufactured by YUCHA

Product Description

Product Features

• Equipped with YUCHA nano-membrane filters tested by ASHRAE, achieving MERV 16, equivalent to HEPA-level air quality suitable for cleanroom use.

• Hot and hazardous dust is cooled by a cyclone centrifugal water mist stage before passing through high-efficiency filters, effectively preventing explosions and ignition.

• Constructed with polished SUS#304 stainless steel, offering corrosion resistance and easy cleaning, suitable for food and pharmaceutical industries.

• Compact footprint and negative pressure design for improved explosion resistance.

• Automatic reverse pulse filter cleaning system enables 24/7 operation with minimal manual maintenance.

• Filters made of PET material, suitable for both wet and dry use, washable, and capable of filtering down to 0.1μm.

• Cyclone dust separation design extends filter lifespan by reducing direct impact of particles.

• Blower system is isolated from dust intake, ensuring long motor service life.

• Dust collection bin can be equipped with garbage bags for quick and hygienic disposal.

• CS-1032 and CS-1033 models also function as wet and dry industrial vacuum cleaners.

• Compatible with centralized dust collection systems.

• Optional explosion-proof design or IE3 variable frequency energy-saving motors available upon request.

• Capable of collecting and recycling metallic particles such as coal slag, iron filings, copper chips, etc.

• High-pressure air pulse-jet cleaning enables continuous, automatic filter maintenance and minimizes labor costs.

• Folded filter design increases surface area for efficient fine dust filtration.

• Pull-handle dust bin for easy removal and maintenance.

• Customizable horsepower and dimensions based on site requirements.

• Built-in silencing system effectively reduces noise emissions.

• Equipped with pressure gauge for visual indication of clogging status.

• Air inlet features integrated cyclone cone and water mist system, reducing temperature and suppressing airborne dust.

✅ The CS-103 Series is suitable for a wide range of industries and dust types, including aluminum-magnesium alloys, metal polishing & grinding, graphite, carbon black, plastics, wood dust, chemicals, pharmaceuticals, food, and electronics.
✅ High-efficiency filtration, low maintenance cost, and advanced customization improve workplace safety and production efficiency.
✅ Explosion-proof models, vacuum feeding systems, fume treatment units, and other integrated environmental solutions are also available.
✅ Specifications such as motor power, airflow rate, static pressure, inlet size, and material types (e.g., SUS#304, SUS#316) can be tailored to your needs.
✅ YUCHA reserves the right to modify design and technical specifications without prior notice.
✅ All photos, tables, and numerical values provided are for reference only and may vary depending on actual design.
✅ Contact us today to learn more about our tailored solutions and receive a personalized quotation.
