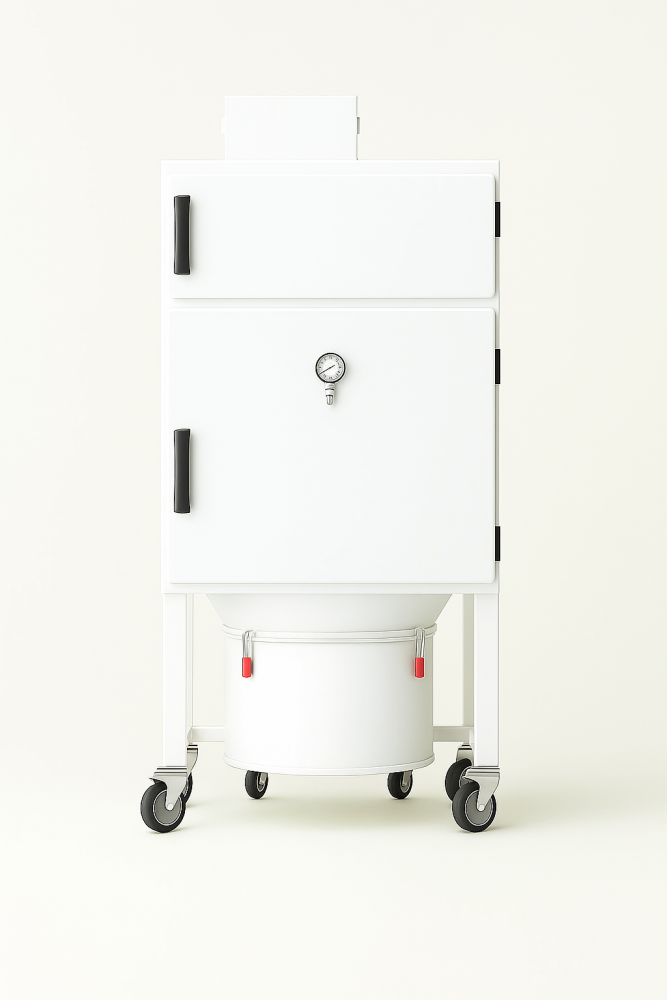

PCB-500 Dust Collector for Copper Foil & PCB Films

Model: PCB-500
Origin: Taiwan

Product Overview

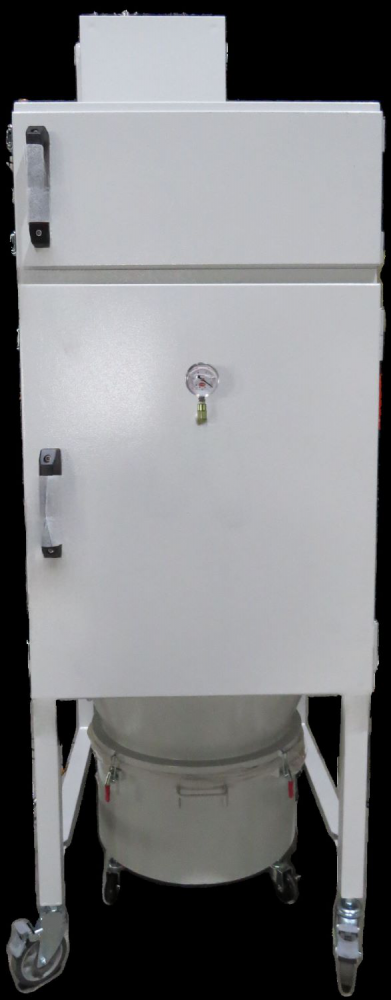

The PCB-500 Series is designed for collecting a wide range of dust types, including aluminum alloy, magnesium alloy, copper foil, PCB film, graphite, fibers, food powder, toner, aluminum powder, pesticides, pharmaceuticals, plastics, sawdust, copper powder, and chemicals—both toxic and non-toxic.
Suitable for cleanrooms, central dust collection systems, industrial processing, PCB manufacturing, biotech, pharmaceuticals, food processing, electronics, and chemical industries. Filtration efficiency reaches 0.1μm (micron). Equipped with an automatic filter cleaning mechanism, the system supports 24/7 continuous operation.

Key Features

• Industry-First Auto-Brush & Air Pulse Filter Cleaning System:
  Quieter and more effective than traditional pulse-jet dust collectors.

• YUCHA Nanofilm Filters:
  ASHRAE-tested and rated MERV 16 (HEPA-grade filtration), ensuring cleanroom-level air quality.

• Anti-Static Configuration Available:
  Can be equipped with anti-static filters and conductive hoses to eliminate static electricity risks.

• Zero Manual Filter Cleaning Required:
  Dust is collected in a bag-compatible bin, reducing labor and maintenance costs.

• High Airflow & Static Pressure:
  Optimized for integration with central dust collection systems.

• Explosion-Proof & Energy-Saving Options:
  Available with explosion-proof design and IE3/IE4 variable frequency energy-saving motor systems.

• Turbo Blower for 24/7 Operation:
  Designed for continuous operation with low risk of overheating.

• High-Capacity PET Filter Cartridges:
  Washable and reusable, suitable for both wet and dry use with large filtration surface area. Easy to install and replace.

• Durable Powder-Coated Main Unit:
  Smooth, high-temperature-resistant coating for long-term durability.

• Automatic Filter Cleaning on Shutdown:
  The system automatically rotates and blows off dust using air pressure when the unit stops, extending filter life.

• Built-In Silencer & Pressure Gauge:
  Low noise operation with easy monitoring of system pressure and blockages.

• Cyclone Separation Mechanism:
  Uses centrifugal force to separate graphite and fibrous particles before they reach the filter, protecting filter integrity.

• Folded PET Filter Cartridge:
  Extra-large surface area for fine dust filtration.

• Mobile Dust Collection Bin:
  Equipped with wheels and locking rings for easy removal and disposal of collected dust.

• Customizable Motor Power Options:
  Available in various horsepower levels up to 7.5HP+ depending on application needs.

• Compact Footprint:
  Space-saving design with optional manual vacuum attachment available.

✅ Explosion-proof dust collectors, powder vacuums, industrial vacuum cleaners, exhaust treatment systems

✅ Custom design of dust hoods, inlet diameters, collection capacity, and material (e.g., SUS 304 / SUS 316)

✅ Tailored motor power, airflow, and static pressure to meet on-site requirements

✅ YUCHA is a professional dust collector manufacturer based in Taiwan, offering full customization

✅ YUCHA reserves the right to modify product design and technical specifications

✅ Images, tables, and specifications are for reference only; actual product may vary

✅ Contact us today for your custom solution and quotation
