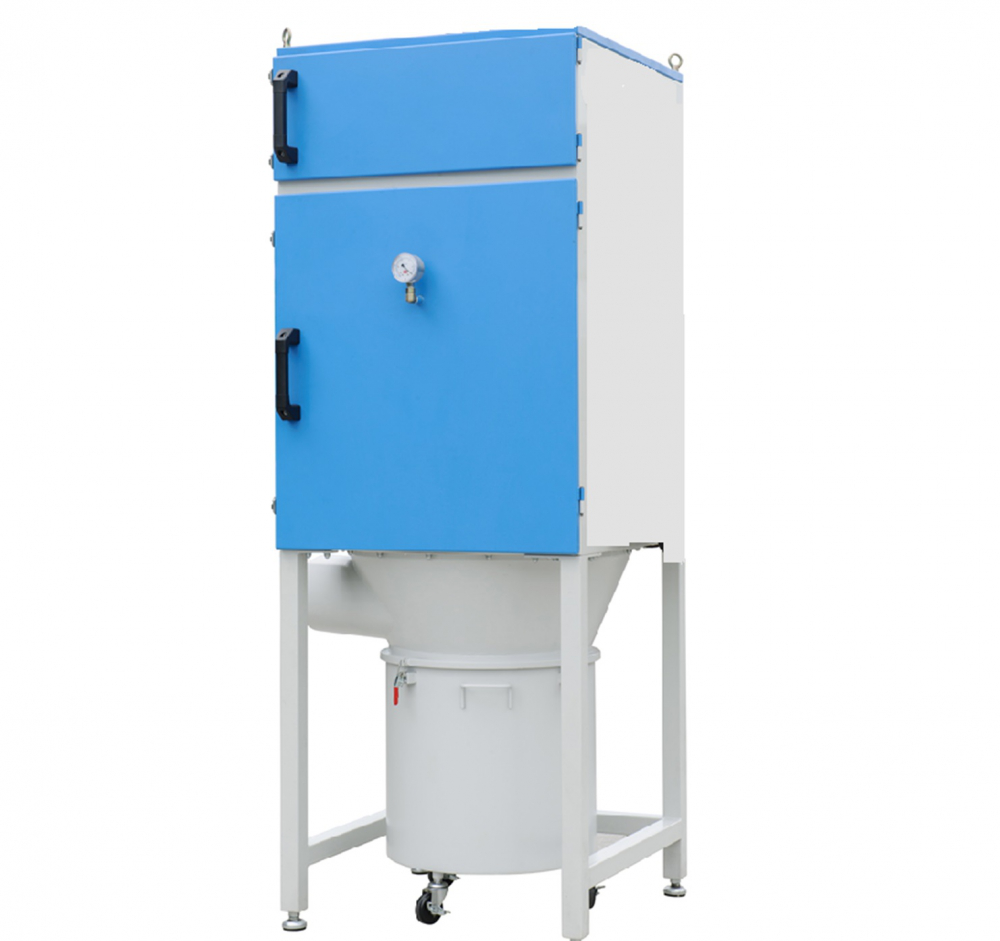

NS-883 Cartridge-Type Automatic Pulse/Blowing Multi-Stage Long-Distance Dust Collector

Origin: Made in Taiwan

Description:

The NS-883 is engineered for long-distance dust collection of aluminum/magnesium alloys, graphite, fibers, food powder, toner, pesticides, pharmaceuticals, plastics, wood dust, copper powder, chemicals, and silica dust – both toxic and non-toxic, and other fine powders. It filters particles down to 0.1μm, making it suitable for cleanroom applications. Equipped with an automatic pulse cleaning system, it supports continuous 24/7 operation.

Ideal for cleanrooms, central dust systems, PCB production, medical & biotech, pharmaceutical, food, chemical, metal processing, and electronics industries.Excellent for both standalone and centralized installations.

Key Features

• MERV 16 Nano-Membrane Filter:
  ASHRAE-certified filter rated at MERV 16, equivalent to HEPA-level filtration. Captures particles down to 0.1μm.

• Multi-Stage Dual-Impeller Turbo Blower:
  Designed for long-distance conveying with high air velocity and static pressure.

• Central System Ready:
  Can be integrated into central dust collection systems for factory-wide efficiency.

• Optional Explosion-Proof & Energy-Saving Configurations:
  Available with IE3/IE4 motors and explosion-proof design for hazardous dusts (e.g., magnesium, aluminum).

• Turbine Blower – 24/7 Operation:
  Runs continuously without overheating, ensuring stable industrial use.

• PET Cartridge Filter:
  Large surface area, supports both wet and dry dust, washable and reusable.

• Intelligent Auto-Cleaning Function:
  Activates dust removal upon shutdown. Air pulse and rotation mechanism clears filter to prevent clogging and extend filter life.

• Cyclonic Pre-Separation:
  Uses centrifugal force to direct heavier particles like graphite and fiber into the dust bin, reducing filter load.

• Soundproof Cabinet & Pressure Gauge Included:
  Minimizes noise pollution; gauge allows easy monitoring of filter blockage.

• Tool-Free Dust Bin Removal:
  Lower bin features quick-release ring and wheels for convenient emptying. Compatible with trash bags.

• Large-Area Folded PET Filter:
  Designed for ultra-fine powder filtration with high surface area and durability.

• Compact Footprint:
  Space-saving design, easy to install even in tight areas.

• Manual Vacuum Tool Option:
  Compatible with optional hand-held vacuum accessories.

• Customizable Motor Power (7.5 HP and above):
  Available in various power and airflow specifications to meet specific site needs.

✅ Explosion-proof dust collectors, powder vacuums, industrial vacuum cleaners, exhaust gas treatment systems
✅ Custom designs for hoods, inlet diameters, collection capacity, and material (304 / 316 stainless steel available)
✅ Tailored configurations for motor power, airflow, and static pressure
✅ YUCHA is a professional dust collector manufacturer based in Taiwan, offering full customization services
✅ YUCHA reserves the right to modify technical specifications without prior notice
✅ All images, figures, and data are for reference only and may vary based on final design
✅ Contact us today for a tailored solution and quotation
